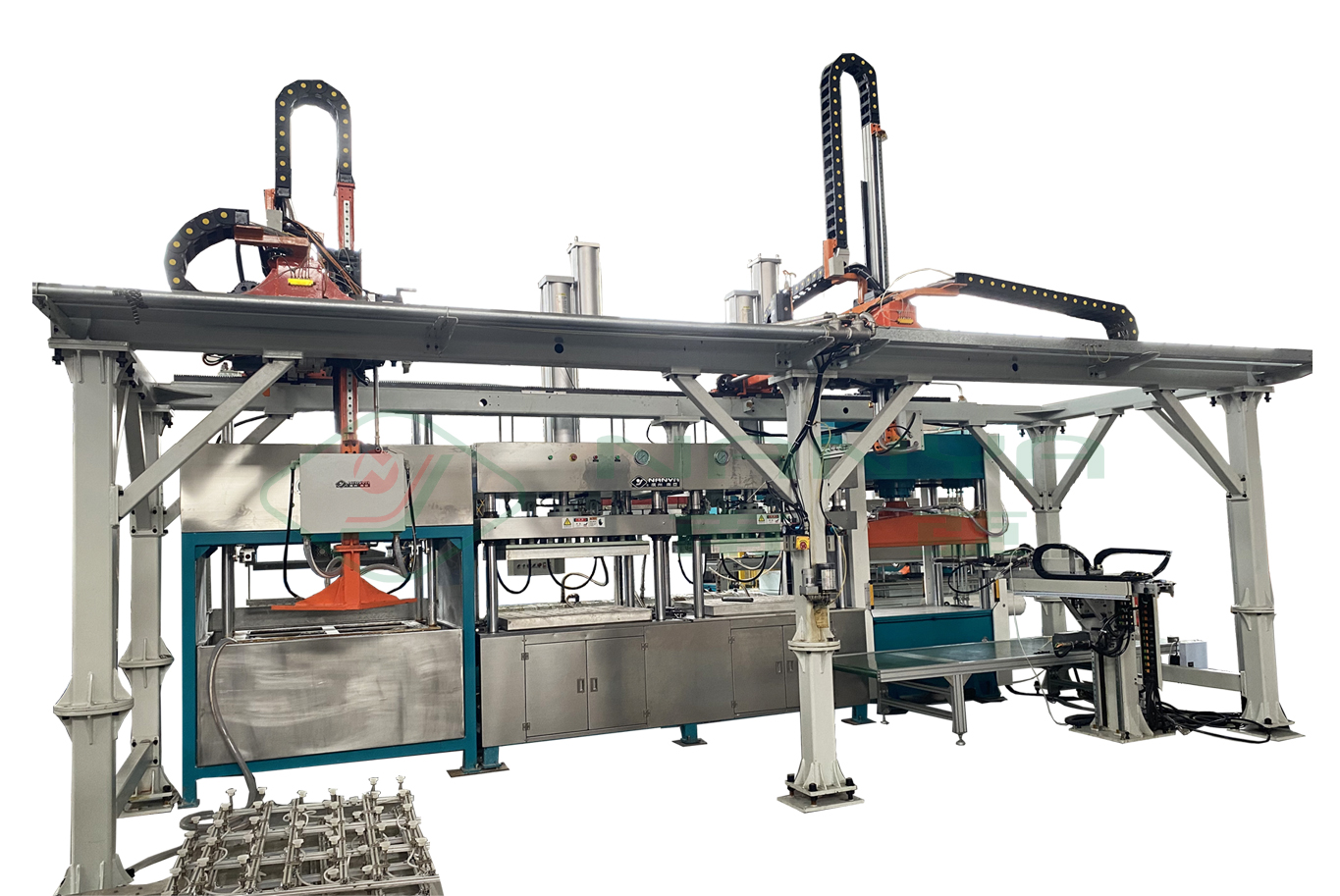

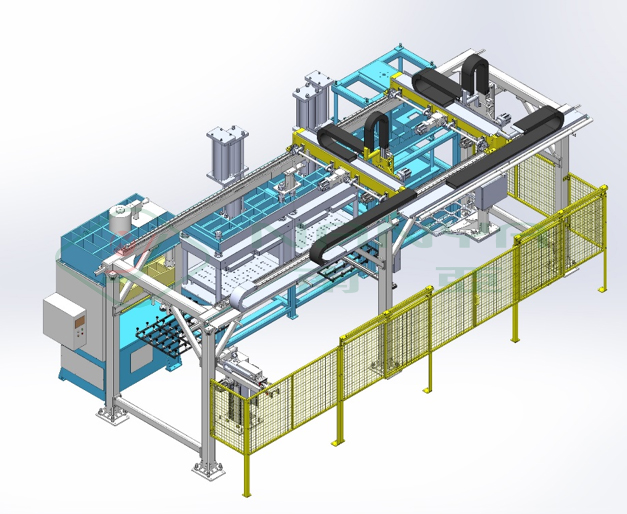

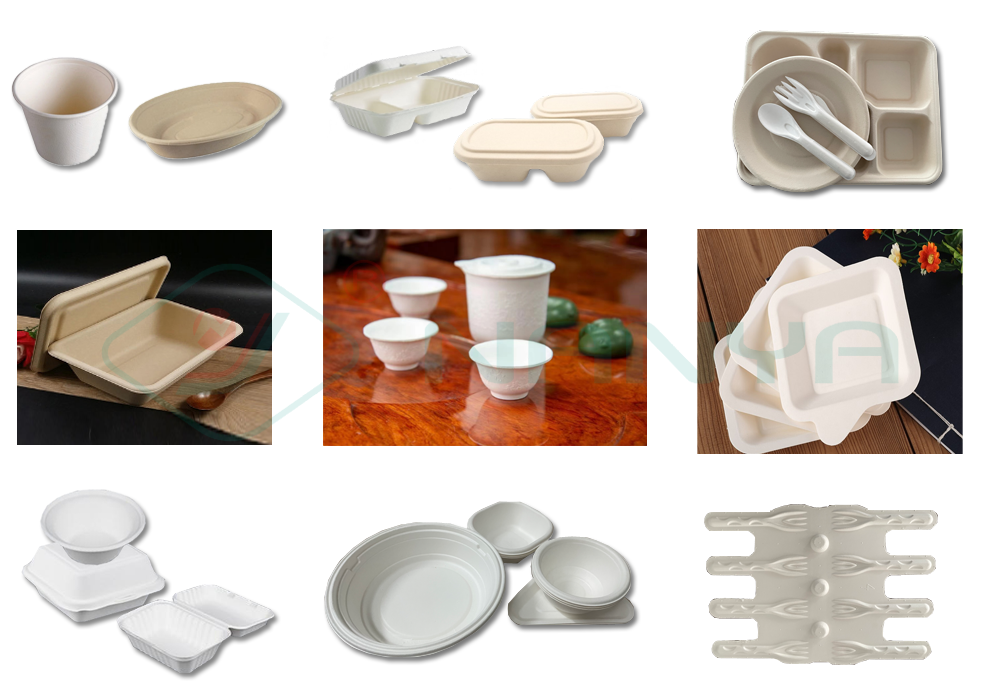

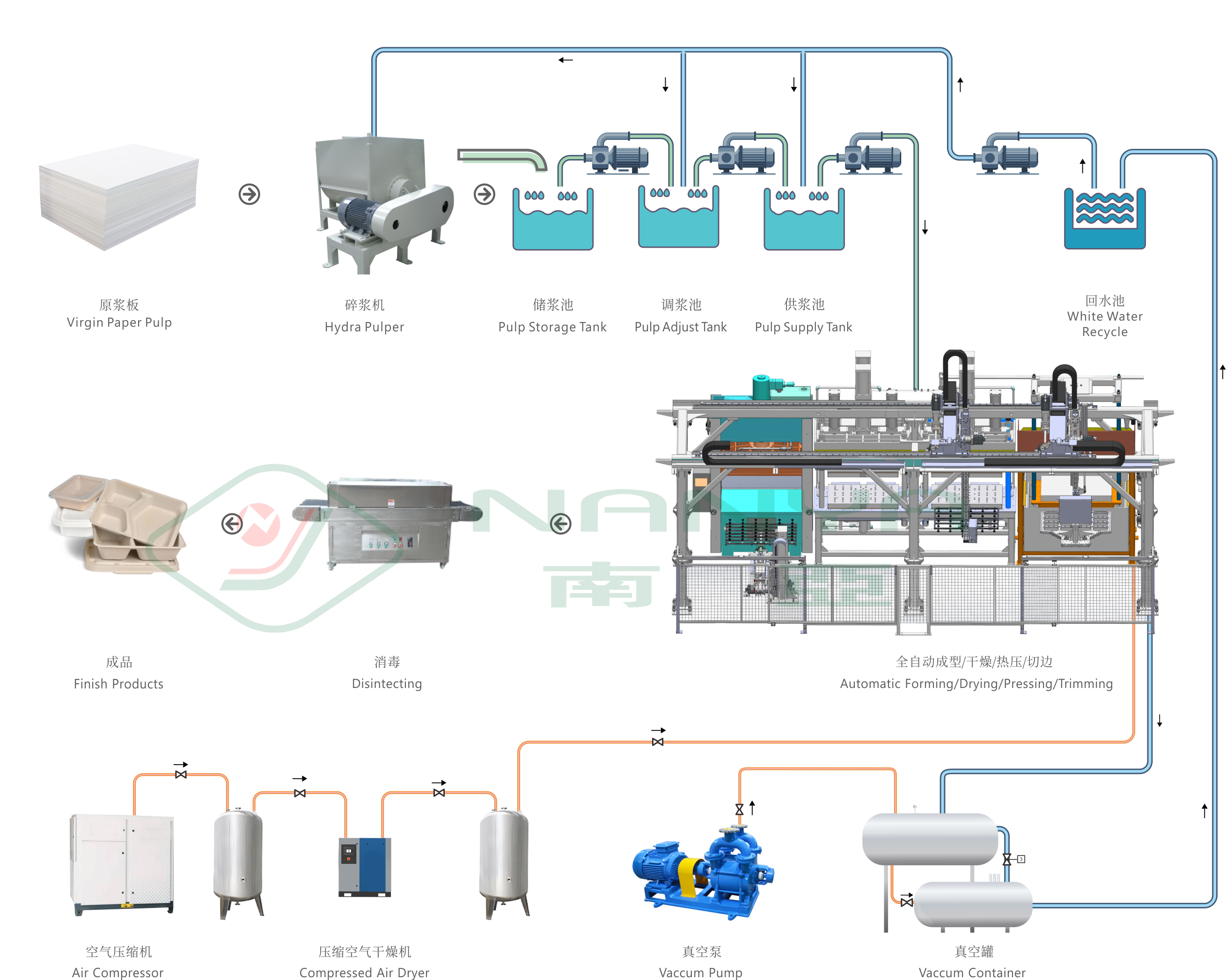

YDQ series automatic tableware production line is composed of pulping system, forming system, vacuum system, high pressure water system and air pressure system. With sugarcane pulp, bamboo pulp, wood pulp, reed pulp, grass pulp and other pulp boards as raw materials, it can produce disposable paper pulp molding tableware. The raw materials are processed by shredding, grinding, adding chemical additives and other processes to form a certain concentration of pulp, and then the pulp is uniformly attached to the customized metal mold through the vacuum action to form a wet blank product, and then the disposable pulp molding and catering products are produced through drying, hot pressing, cutting, stacking and other processes.
① High degree of automation. Forming - drying and hot pressing in mold- edge cutting - stacking full automation
② Equipment operation and maintenance is simple, low failure rate.
③ The transfer of robot arm reduces the consumption of mold net
④ Low labor intensity of workers
⑤ The surface of the product is smooth and clean
YDQ series automatic tableware production line | |||||
TF-10A Production Line Data | |||||
Model |
BY080 |
Mold plate size |
1100*800mm |
Capacity |
10 ton/day |
Forming type | Vacuum pulping (reciprocating) |
Drying method | Forming in mold(Optional electric heating or heat conduction oil heating) |
Control method |
PLC＋touch screen |
Material consumption |
6.2-10.4kg/day |
Power consumption (Electricity/Oil) |
500-700kw/h 120-160m³/h | Water consumption |
1.0-1.4 m³/h |
Worker | 10-12 workers/shift |
Workshop size |
≥2000㎡ |
Installed power |
Heat conducting oil：900-110KW 2300-2500KW |
Other Information | |||||
Place of origin |
China |
Brand |
NANYA |
Certification |
CE, UL, CSA (optional) |
Payment method |
Cash、L/C、T/T、 Western Union |
Packing method |
By export standard |
Delivery time |
45-150 days |
Remark: The above data is for reference only and is subject to change as technology is updated. | |||||
1. Are you a manufacturer or a trader?
A: Guangzhou Nanya Pulp Molding Equipment Co., Ltd. is a manufacturer with near 30 years of experience in developing and producing pulp molding equipment. We have become very proficient in the production process of equipment and molds, and we can provide our customers with mature market analysis and production advice.
2. What kind of molds can you produce?
A: At present, we have four main production lines, including pulp molded tableware production line, egg tray/egg carton/fruit tray/coffee cup tray production line, general industrial packaging production line, and fine industrial packaging production line. In addition, we can also do disposable medical paper tray production line. At the same time, we have professional design team, we can customize the mold for customers according to their requirements, and the mold will be produced after the samples are inspected and qualified by customers.
3. What is the payment method?
A: After signing the contract, payment will be made in accordance with 30% deposit by wire transfer and 70% by wire transfer or spot L/C before shipment. The specific way can be agreed.
4. What is your after-sales service?
A: ①Provide 12 months warranty period, free replacement of damaged parts during the warranty period.
②Provide operation manuals, drawings and process flow diagrams for all equipment.
③After the equipment is installed, we have professional personnel to guide the buyer's staff on the operation and maintenance methods.
④We can guide the buyer's engineer on production process and formula.
