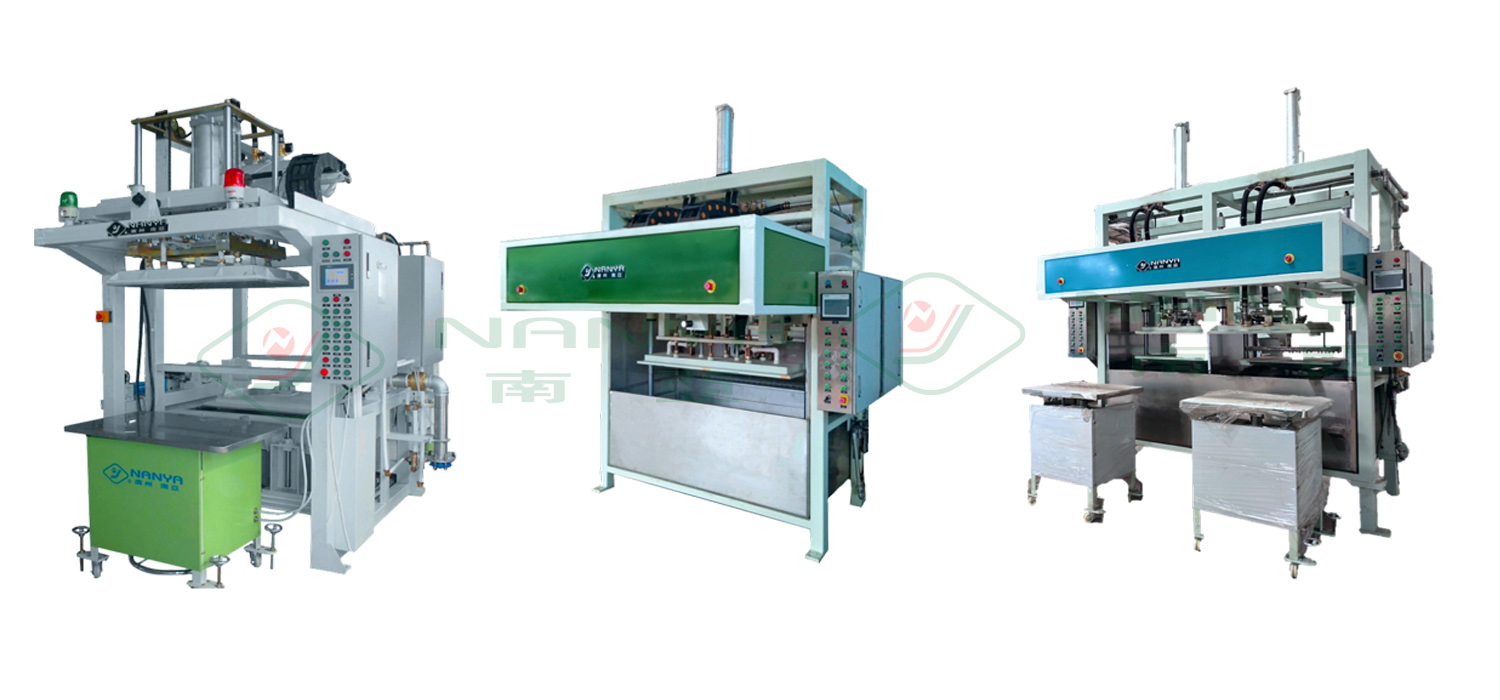

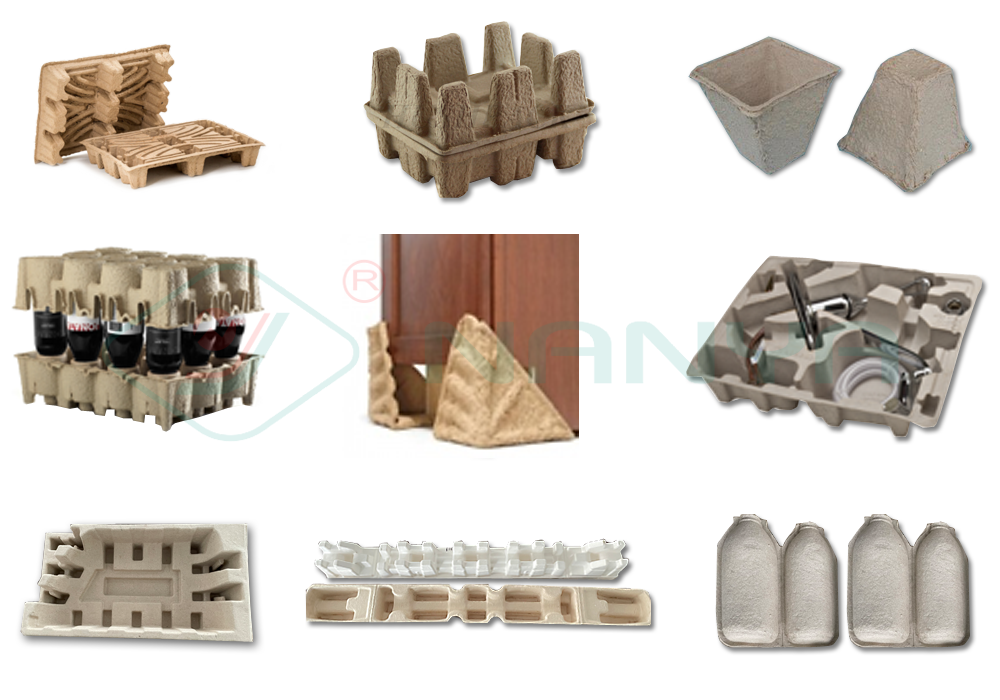

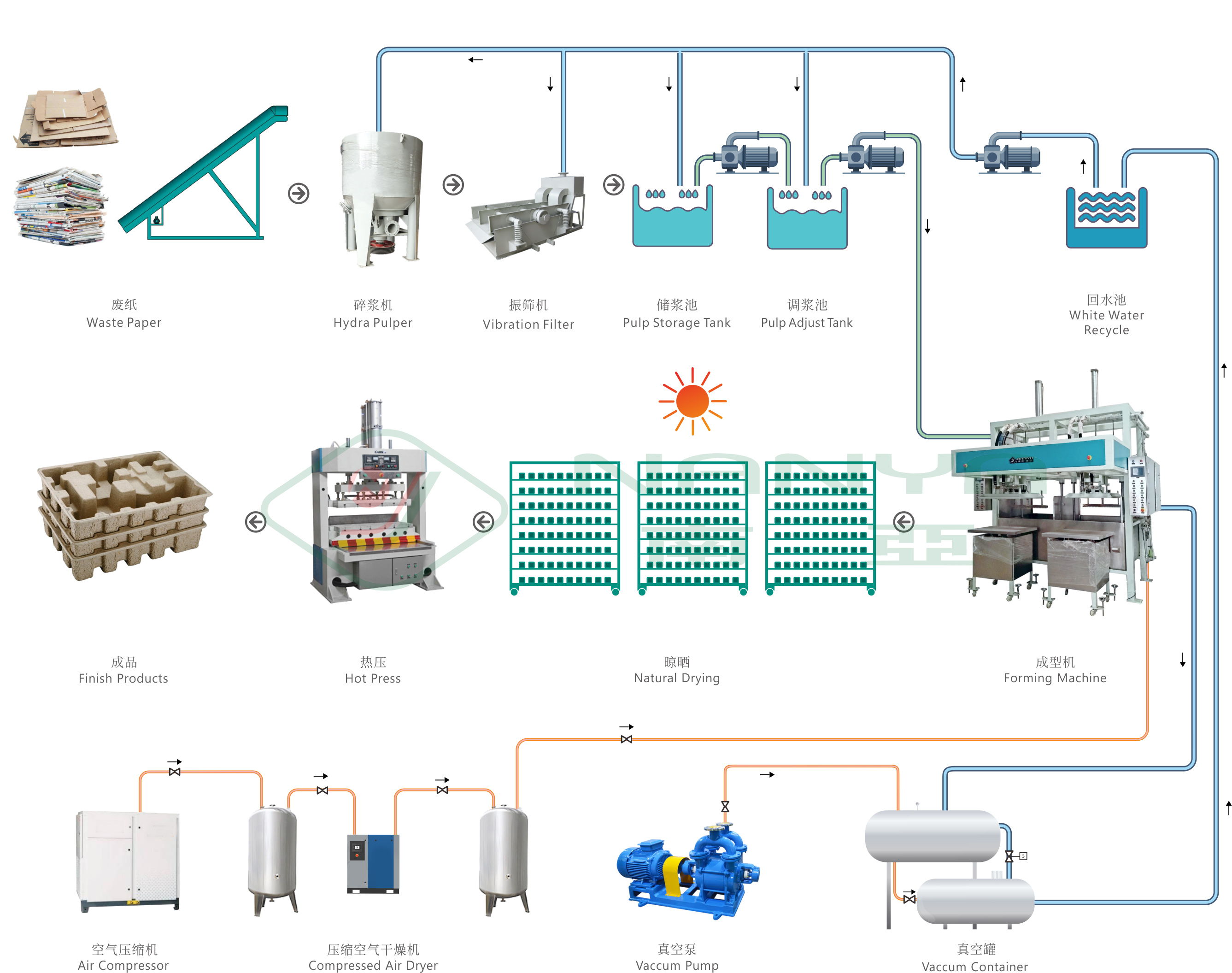

The semi-automatic production line has pulping system, forming system, drying system, vacuum system, high pressure water system and air pressure system. With waste newspapers, waste cartons and other raw materials, it can support the production of packaging of various electronic products, shock-proof internal packaging of industrial components, paper brackets and other products. The main equipment is semi-automatic industrial package forming machine, which needs manually transfer the wet products.
Production line features:
① Simple structure, flexible configuration, easy operation, affordable price;
② A variety of forming machine equipment can be selected, such as reciprocating, flipping, single cylinder, double cylinder and other models;
③ Independent double cylinder station models can produce products of different shapes and different thicknesses on one machine at the same time;
Dry press industrial packaging production line series - semi - automatic package production line | ||||||||||
Turnover forming machine (single side) production line parameters | ||||||||||
Model |
CW211 |
Mold plate size |
1200*660mm
|
Product height | ≤180 | |||||
Forming type |
Reciprocating |
Drying method | Oast hous/Natural drying |
Control |
PLC＋touch screen | |||||
Drying line parameter | ||||||||||
Multilayer flat conveying drying line / single layer flat conveying drying line / tunnel drying line / Hanging basket drying line
| Capacity（ton/h） | Operating temperature（℃） | Type of heat source | |||||||
2~10 | 180~230 | Oil and gas | ||||||||
1~8 | 140~160 | Coal (wood) | ||||||||
1~8 | 140~160 | Biomass fuel | ||||||||
2~12 | 140~160 | Steam heating | ||||||||
2~12 | 180~230 | Heat transfer oil | ||||||||
2~10 | 180~230 | Electric heating | ||||||||
2~10 | 180~230 | Dual heat source | ||||||||
Hot press machine（Shaping machine）parameter | ||||||||||
Air-operated hot press machine | Hydraulic hot press machine | Bottom mold shift-out hot press machine | ||||||||
Mold plate size | 800*600 | 800*600 | 1100*700 | |||||||
Equipment weight | 1.8tons | 2.4tons | 7tons | |||||||
Other information | ||||||||||
Country of origin | China | Brand | NANYA | Authentication | CE,TUV,SGS, ISO9001(optional) | |||||
Terms of Payment | Cash, L/C, T/T, Western Union |
Packing method |
On export standards | Delivery time |
60-120 days | |||||
Remark: The above data is for reference only and is subject to change with technical updates. | ||||||||||
1. Are you a manufacturer or a trader?
A: Guangzhou Nanya Pulp Molding Equipment Co., Ltd. is a manufacturer with near 30 years of experience in developing and producing pulp molding equipment. We have become very proficient in the production process of equipment and molds, and we can provide our customers with mature market analysis and production advice.
2. What kind of molds can you produce?
A: At present, we have four main production lines, including pulp molded tableware production line, egg tray/egg carton/fruit tray/coffee cup tray production line, general industrial packaging production line, and fine industrial packaging production line. In addition, we can also do disposable medical paper tray production line. At the same time, we have professional design team, we can customize the mold for customers according to their requirements, and the mold will be produced after the samples are inspected and qualified by customers.
3. What is the payment method?
A: After signing the contract, payment will be made in accordance with 30% deposit by wire transfer and 70% by wire transfer or spot L/C before shipment. The specific way can be agreed.
4. What is your after-sales service?
A: ①Provide 12 months warranty period, free replacement of damaged parts during the warranty period.
②Provide operation manuals, drawings and process flow diagrams for all equipment.
③After the equipment is installed, we have professional personnel to guide the buyer's staff on the operation and maintenance methods.
④We can guide the buyer's engineer on production process and formula.
