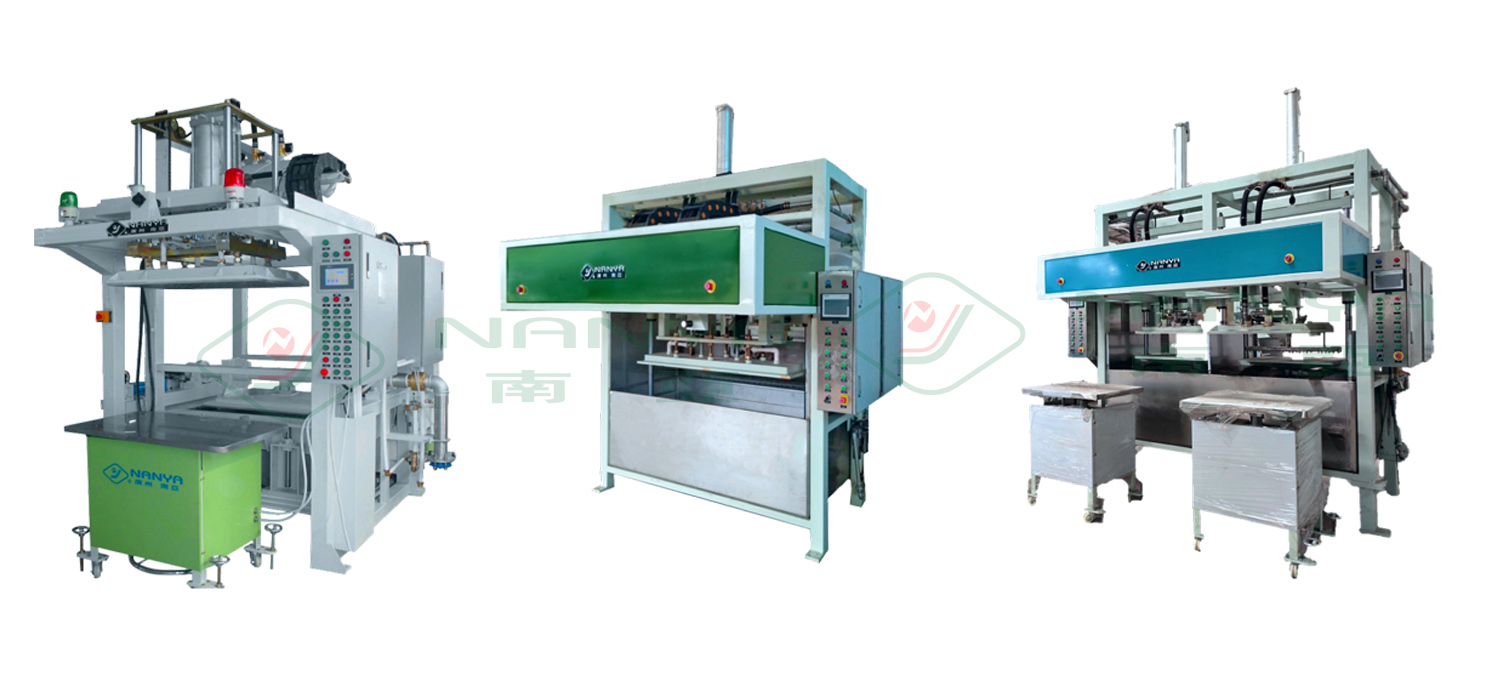

The semi-automatic general industrial package production line is equipped with pulp making system, forming system, drying system, vacuum system, high pressure water system and air pressure system. Using waste newspapers and waste cartons as raw materials, it can support the production of various electronic product packaging, shockproof internal packaging for industrial parts, paper trays and other products. The main equipment is semi-automatic work package forming machine, which requires manual transfer of wet blank products.
①Simple structure, flexible configuration, easy operation and affordable price
②A variety of forming machines are available, such as reciprocating, flip type, single cylinder, double cylinder and other models
③Independent double-cylinder models can produce products of different shapes and thicknesses on one machine at the same time
Dry press industrial packaging production line series- Semi-automatic general industrial package production line | ||||||||||
Reciprocating Single Cylinder Forming Machine Line Data | ||||||||||
Model |
CW060 |
Mold plate size |
1200*800mm |
Capacity |
1-1.2 t/day | |||||
Forming type |
Reciprocating |
Drying method |
Dryer / drying room / natural drying |
Control method |
PLC＋touch screen | |||||
Material consumption |
1-1.5 t/day | Cylinder |
125*650 |
Water consumption |
0.2m³/h | |||||
Dryer data | ||||||||||
Multilayer flat conveying drying line / single layer flat conveying drying line / tunnel drying line / Hanging basket drying line
| Capacity（t/h） | Working temperature（℃） | Heating source | |||||||
2~10 | 180~230 | Oil and gas | ||||||||
1~8 | 140~160 | Coal (firewood) | ||||||||
1~8 | 140~160 | Biomass fuel | ||||||||
2~12 | 140~160 | Steam heating | ||||||||
2~12 | 180~230 | Heat-conducting oil | ||||||||
2~10 | 180~230 | Electric heating | ||||||||
2~10 | 180~230 | Double heat source | ||||||||
Hot press machine（Shaping machine） data | ||||||||||
Air-operated hot press machine | Hydraulic hot press machine | Bottom mold shift-out hot press machine | ||||||||
Mold plate size | 800*600 | 800*600 | 1100*700 | |||||||
Weight of machine | 1.8 tons | 2.4 tons | 7 tons | |||||||
Other Information | ||||||||||
Place of origin |
China |
Brand |
NANYA |
Certification |
CE,TUV,SGS, ISO9001(optional) | |||||
Payment method |
Cash, L/C,T/T, Western Union |
Packing method |
By export standards |
Delivery time |
60-120 days | |||||
Remark: The above data is for reference only and subject to technical update. | ||||||||||
1. Are you a manufacturer or a trader?
A: Guangzhou Nanya Pulp Molding Equipment Co., Ltd. is a manufacturer with near 30 years of experience in developing and producing pulp molding equipment. We have become very proficient in the production process of equipment and molds, and we can provide our customers with mature market analysis and production advice.
2. What kind of molds can you produce?
A: At present, we have four main production lines, including pulp molded tableware production line, egg tray/egg carton/fruit tray/coffee cup tray production line, general industrial packaging production line, and fine industrial packaging production line. In addition, we can also do disposable medical paper tray production line. At the same time, we have professional design team, we can customize the mold for customers according to their requirements, and the mold will be produced after the samples are inspected and qualified by customers.
3. What is the payment method?
A: After signing the contract, payment will be made in accordance with 30% deposit by wire transfer and 70% by wire transfer or spot L/C before shipment. The specific way can be agreed.
4. What is your after-sales service?
A: ①Provide 12 months warranty period, free replacement of damaged parts during the warranty period.
②Provide operation manuals, drawings and process flow diagrams for all equipment.
③After the equipment is installed, we have professional personnel to guide the buyer's staff on the operation and maintenance methods.
④We can guide the buyer's engineer on production process and formula.
