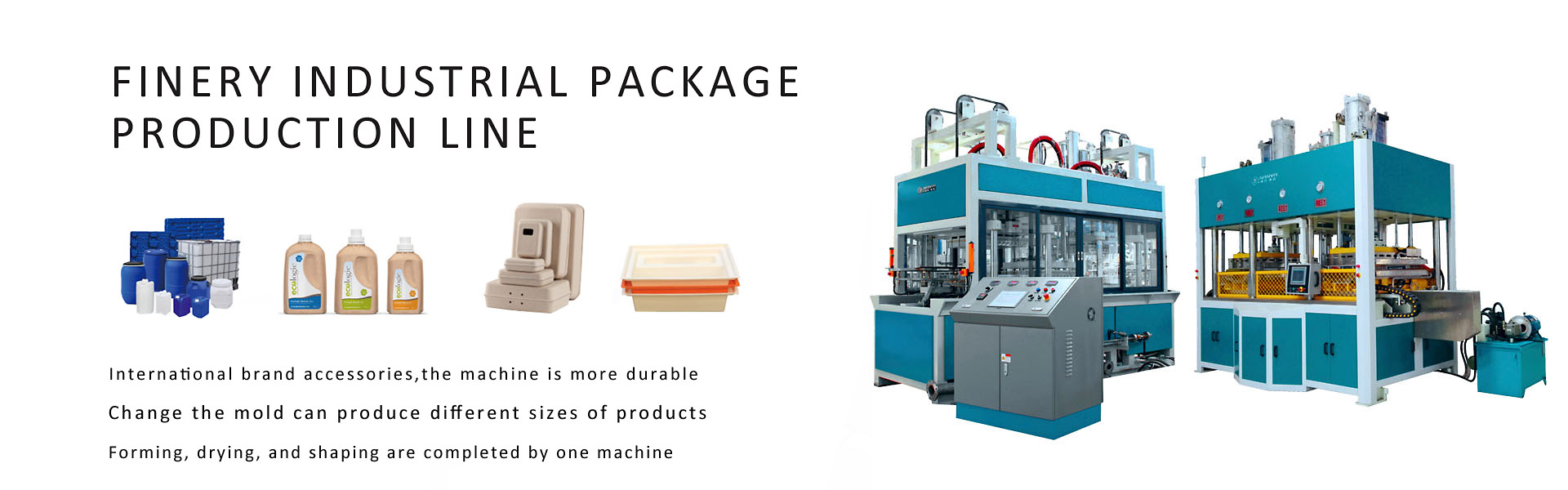

The split type finery package production line consists of pulp making system, main machine, vacuum system, high pressure water system and air pressure system, which is mainly used to produce high grade lining or outer package. The production line takes sugar cane pulp, bamboo pulp, wood pulp, reed pulp, straw pulp and other pulp boards as raw materials, and blends them into a certain concentration of pulp through the process of crushing and pulping, and then makes the pulp evenly adhere to the special metal mold to form a wet products through vacuum, and the wet products are then transformed into final products through the process of drying, hot pressing, edge cutting, stacking and so on.
① Forming, drying and hot pressing are done by separate equipment
②Product transfer process can choose manual transfer or robotic arm transfer
③Multiple equipment mold plate sizes can be selected to maximize production capacity
④The degree of automation of the forming and wet pressing processes can be selected separately according to demand
⑤Independent equipment that can be adapted to different sizes of plants
Finery packaging line series- Split type finery packaging production line | |||||
Production Line Data | |||||
Mold plate size |
1100*800mm | Capacity |
500-1000kg/day(24h) | ||
Forming type |
Automatic forming |
Drying method |
Automatic drying and hot pressing |
Control method |
PLC＋Touch screen |
Other Information | |||||
Place of Origin |
China |
Brand |
NANYA |
Certification |
CE,TUV,SGS, ISO9001(optional) |
Payment method |
Cash, L/C, T/T, Western Union |
Packing method |
By export standard |
Delivery time |
60-120 days |
Remark: The above data is for reference only and is subject to change as technology is updated. | |||||
1. Are you a manufacturer or a trader?
A: Guangzhou Nanya Pulp Molding Equipment Co., Ltd. is a manufacturer with near 30 years of experience in developing and producing pulp molding equipment. We have become very proficient in the production process of equipment and molds, and we can provide our customers with mature market analysis and production advice.
2. What kind of molds can you produce?
A: At present, we have four main production lines, including pulp molded tableware production line, egg tray/egg carton/fruit tray/coffee cup tray production line, general industrial packaging production line, and fine industrial packaging production line. In addition, we can also do disposable medical paper tray production line. At the same time, we have professional design team, we can customize the mold for customers according to their requirements, and the mold will be produced after the samples are inspected and qualified by customers.
3. What is the payment method?
A: After signing the contract, payment will be made in accordance with 30% deposit by wire transfer and 70% by wire transfer or spot L/C before shipment. The specific way can be agreed.
4. What is your after-sales service?
A: ①Provide 12 months warranty period, free replacement of damaged parts during the warranty period.
②Provide operation manuals, drawings and process flow diagrams for all equipment.
③After the equipment is installed, we have professional personnel to guide the buyer's staff on the operation and maintenance methods.
④We can guide the buyer's engineer on production process and formula.
