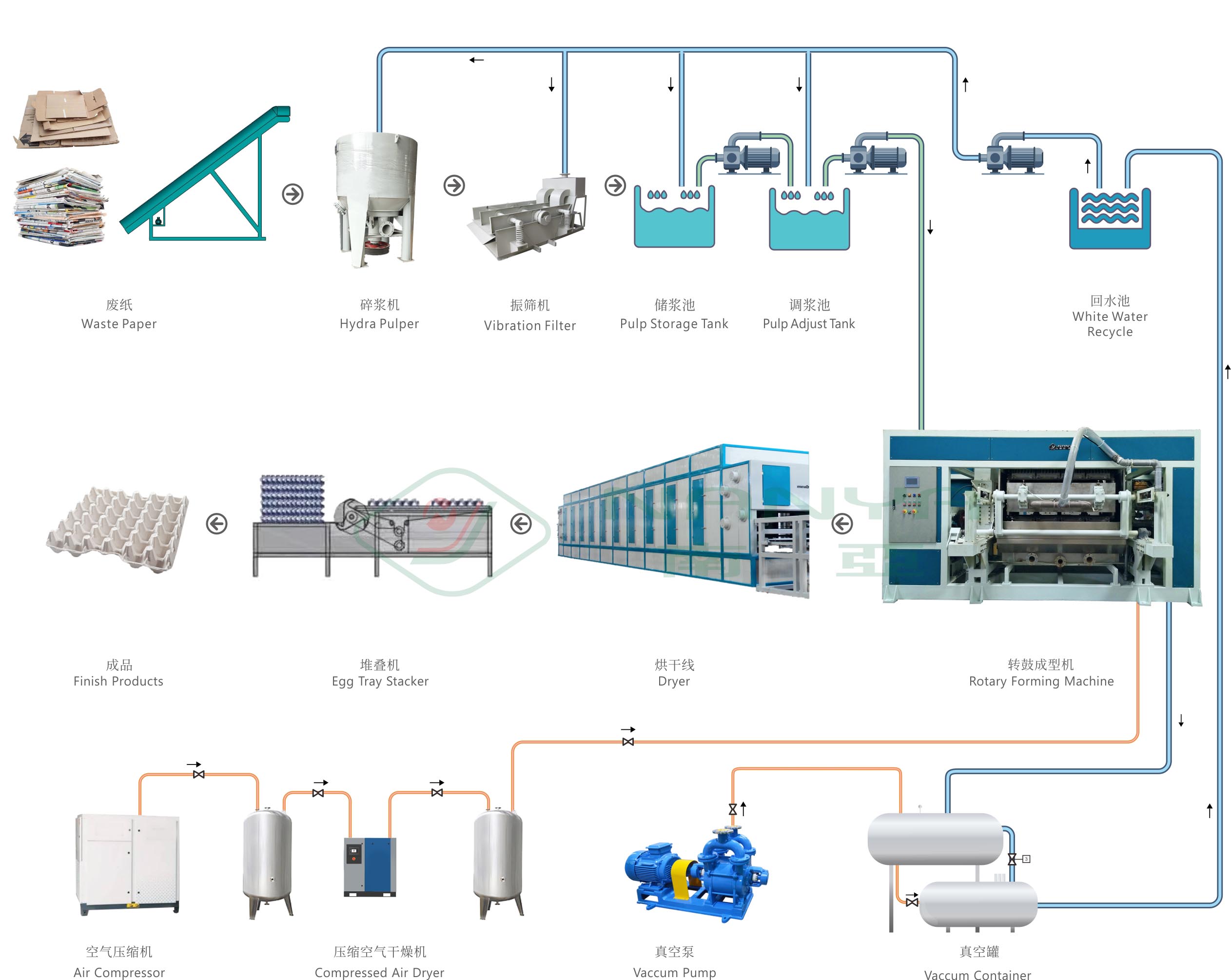

Fully Automatic rotary type production line consists of pulping system, forming system, drying system, stacking system, vacuum system, high pressure water system and air pressure system, which is specialized in producing various specifications of egg cartons. The production line is made of waste paper such as waste newspaper, waste carton paper, trimmings and other waste paper as raw materials, which are blended into a certain concentration of pulp through the process of hydrolysis and filtration, water injection, etc. The wet blank is formed by vacuum adsorption on the customized mold through the forming system, and finally the stacking is completed after drying and hot pressing in the dryer.

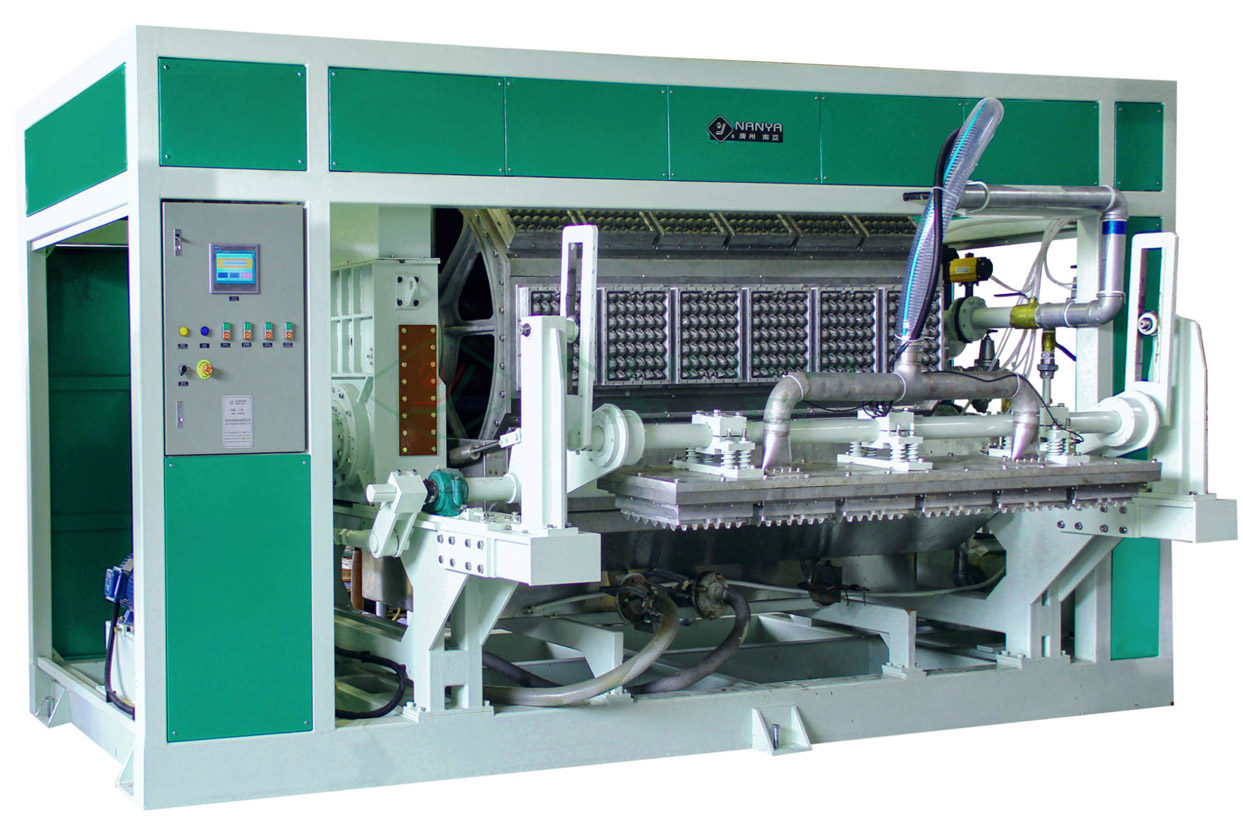

①The rotary drum body and mold plate are made of aluminum, light weight under the same thickness and strength, less burden on the transmission system, and more durable equipment.
②Automatic mold washing and burr washing, better quality of egg tray.
③4~6 people can control the whole production line.
④High capacity per unit, lower production cost.
⑤ With 6-layer energy-saving drying line.

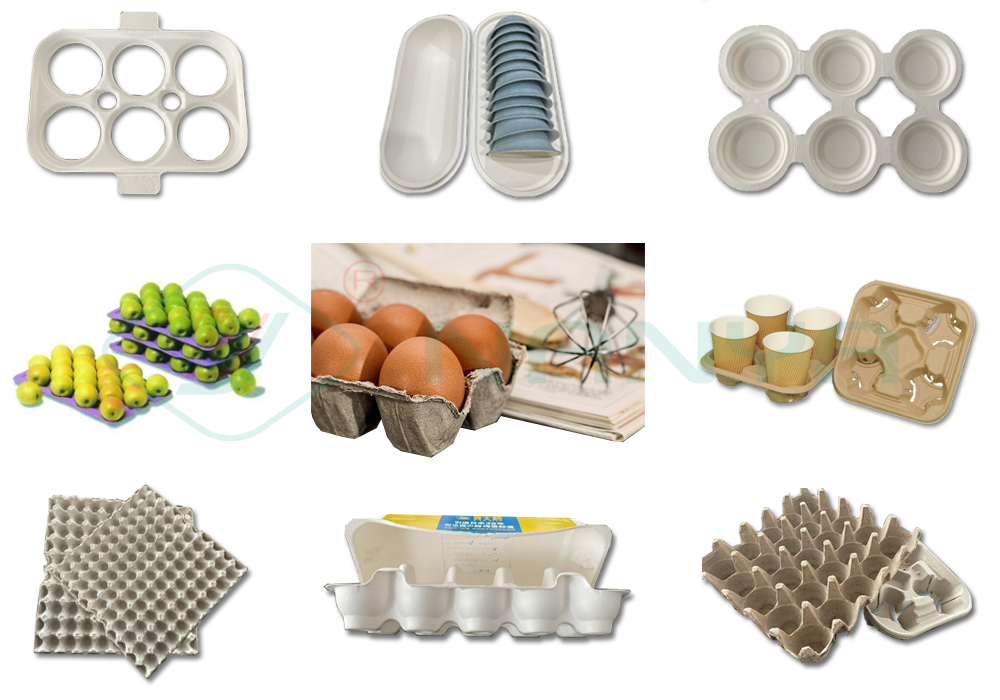

Pulp Molding Egg Tray / Fruit Tray / Cup Tray / Egg Carton Production Line Series - Automatic Rotary Machine Production Line | |||||
ER3000-A Production Data | |||||
Capacity |
2500-3000 pcs/h |
Forming type | Vacuum pulping (reciprocating) |
Control |
Touch screen |
Material consumption |
180-210kg/h |
Electricity consumption |
~120kw |
Water consumption |
0.8~1.2 ton/h |
Worker |
4-5 workers/shift |
Workshop size |
≥700㎡ |
Installed power |
Electricity installation 180kw |
Other Information | |||||
Place of origin |
China |
Brand |
NANYA |
Certification |
CE, UL, CSA (optional) |
Payment method |
Cash, L/C, T/T, Western Union |
Packing method |
By export standard |
Delivery time |
45-150 days |
Remark: The above data is for reference only and is subject to change as technology is updated. | |||||
1. Are you a manufacturer or a trader?
A: Guangzhou Nanya Pulp Molding Equipment Co., Ltd. is a manufacturer with near 30 years of experience in developing and producing pulp molding equipment. We have become very proficient in the production process of equipment and molds, and we can provide our customers with mature market analysis and production advice.
2. What kind of molds can you produce?
A: At present, we have four main production lines, including pulp molded tableware production line, egg tray/egg carton/fruit tray/coffee cup tray production line, general industrial packaging production line, and fine industrial packaging production line. In addition, we can also do disposable medical paper tray production line. At the same time, we have professional design team, we can customize the mold for customers according to their requirements, and the mold will be produced after the samples are inspected and qualified by customers.
3. What is the payment method?
A: After signing the contract, payment will be made in accordance with 30% deposit by wire transfer and 70% by wire transfer or spot L/C before shipment. The specific way can be agreed.
4. What is your after-sales service?
A: ①Provide 12 months warranty period, free replacement of damaged parts during the warranty period.
②Provide operation manuals, drawings and process flow diagrams for all equipment.
③After the equipment is installed, we have professional personnel to guide the buyer's staff on the operation and maintenance methods.
④We can guide the buyer's engineer on production process and formula.
